Key Features

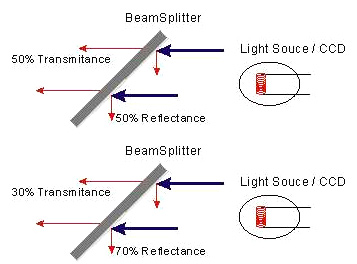

• Split the transmittance and reflectance ratio of light.
• 50%/50% or other ratio available.

Applications

• Optical Equipments.
• Detecting devices.
• Medical Equipments.
• Laser Systems.

Spectral Characteristics

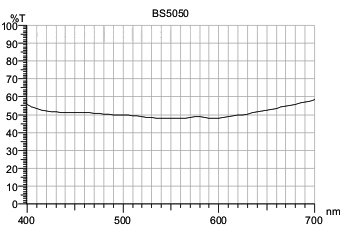

• Tave=50+-5% @ 420-700nm AOI=45°

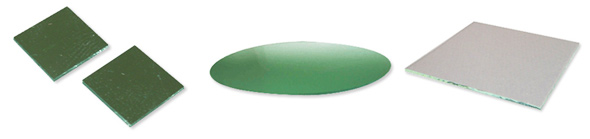

Physical Characteristics

Thickness

• Glass: 0.7, 1.1, 3mm

Dimension

• Square: 8*8 ~ 160*160mm
• Round: 8 ~ 150mm

Operating Temperature

• 150 celsius

Spectral Characteristics

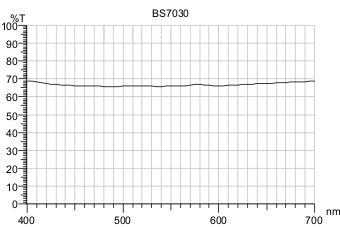

• Tave=70+-5% @ 420-700nm aoi=45°


Physical Characteristics

Thickness

• Glass: 1.1mm

Dimension

• Square: 8*8 ~ 220*220mm
• Round: 8 ~ 210mm

Operating Temperature

• 150 celsius

Spectral Characteristics

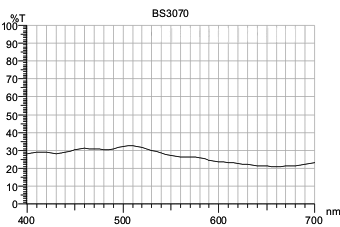

• Tave=30+-5% @ 430-700nm aoi=45°


Physical Characteristics

Thickness

• Glass: 1.1mm

Dimension

• Square: 8*8 ~ 220*220mm
• Round: 8 ~ 210mm

Operating Temperature

• 150 celsius
