SCHOTT NEXTREMA®
Glass-ceramics engineered and designed for extreme conditions
NEXTREMA® is a unique family of glass-ceramics. This material combines the glossy appearance of glass with exceptional thermal, chemical, optical and mechanical properties like an attractive bending strength of 100 – 160 MPa for materials with a thickness of around 4 mm. With a thermal resistance of 950 °C or for specific applications even higher, combined with a thermal shock resistance of 700 – 820 °C, it ensures a reliable material performance even under extreme temperature conditions. Our six unique glass-ceramic types combined with the wide range of sizes and thicknesses varying from 2 mm to 6 mm (> 6 mm on request) will open up new possibilities in product design and performance. The unique transmission spectra provide new ideas for combining innovative infrared heating functionalities with attractive lighting effects. The versatility of this material will surely impress you.
Key properties
- Very low coefficient of linear thermal expansion
- Excellent temperature and thermal shock resistance
- High transmission in infrared range and unique visible light transmission profiles
- Excellent chemical resistance
- High mechanical strength

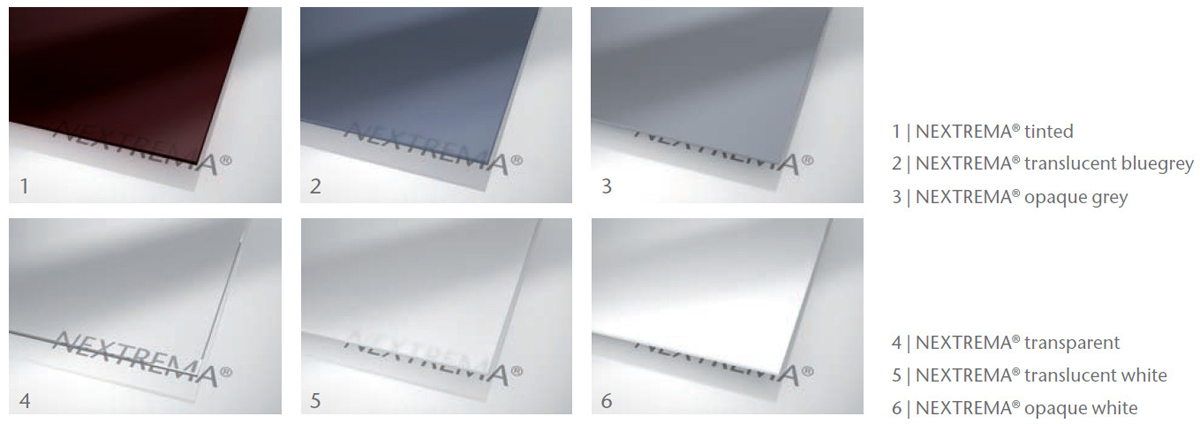

The six glass-ceramic types

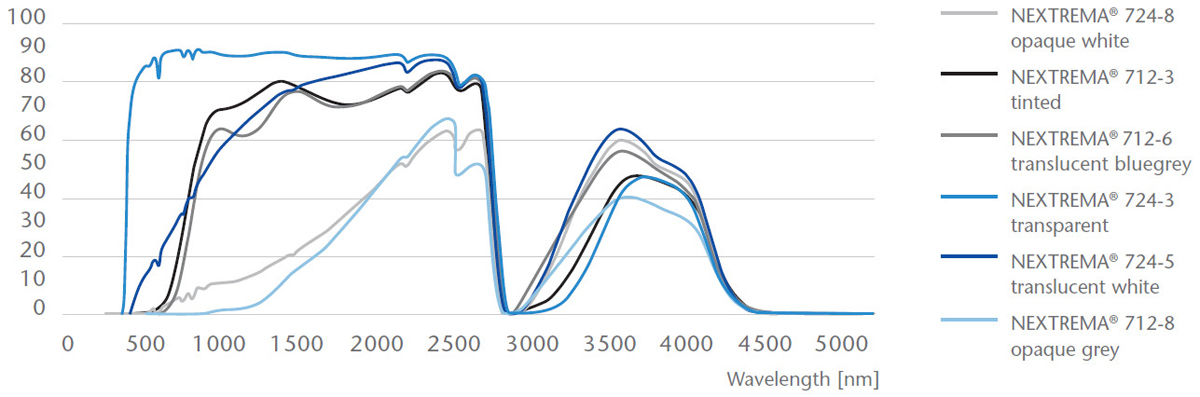

Transmission [%]
This graph is based on data from individual measurements. Deviations may result from manufacturing process. Internal transmissions graph of different ceramization status with sample thickness of approximately 4 mm.
