Name

UV Pass Filters / UV Trans. Filters

Key Features

• Blocking Visible Light.
• UV Light / Wave Transmit.

Applications

• Medical Equipments.
• Optical Equipments.
• UV Light Source.
• UV Light Box.

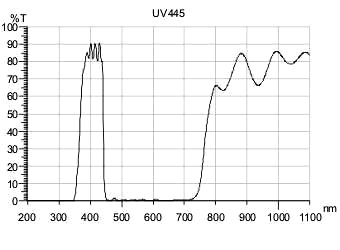

Spectral Characteristics

• T50%=445 +/- 10nm
• Tave>75% @ 390-420nm
• Tave<5% @ 470-700nm


Physical Characteristics

Thickness

• Glass: 1.1mm
• Borofloat: 1.1mm

Dimension

• Square: 3*3 ~ 160*160mm
• Round: 3 ~ 150mm

Operating Temperature

• Glass: 150 celsius
• Borofloat: 450 celsius

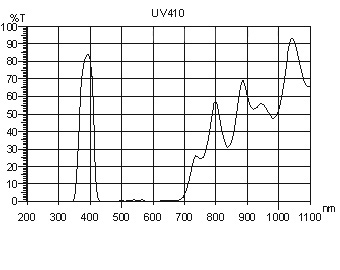

Spectral Characteristics

• T50%=410 +/- 10nm
• Tave>65% @ 380-400nm
• Tave<5% @ 450-700nm


Physical Characteristics

Thickness

• Glass: 1.1mm
• Borofloat: 1.1mm

Dimension

• Square: 3*3 ~ 160*160mm
• Round: 3 ~ 150mm

Operating Temperature

• Glass: 150 celsius
• Borofloat: 450 celsius

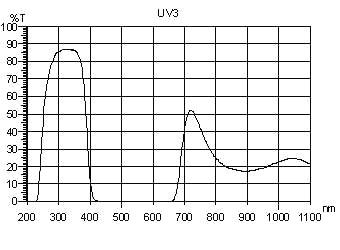

Spectral Characteristics

• Tave>60 @ 320-340nm
• Tave<2% @ 420-650nm
• Tave<3% @ 780-1100nm


Physical Characteristics

Thickness

• Glass Filter: 1~3.5mm

Dimension

• Square: 3*3 ~ 150*150mm
• Round: 3 ~ 145mm

Operating Temperature

• 120 celsius

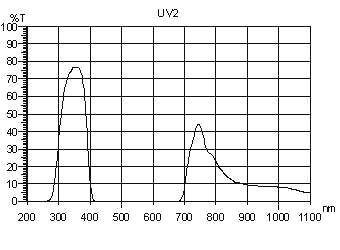

Spectral Characteristics

• Tave>60% @ 345-355nm
• Tave<2% @ 430-680nm
• Tave<30% @ 700-1100nm


Physical Characteristics

Thickness

• Glass Filter: 1~3.5mm

Dimension

• Square: 3*3 ~ 150*150mm
• Round: 3 ~ 145mm

Operating Temperature

• 120 celsius

Spectral Characteristics

• Tave>60% @ 290-340nm
• Tave<2% @ 450-660nm
• Tave<60% @ 700-1100nm


Physical Characteristics

Thickness

• Glass Filter: 1~ 3.5mm

Dimension

• Square: 3*3 ~ 210*260mm
• Round: 3 ~ 150mm

Operating Temperature

• 120 celsius
